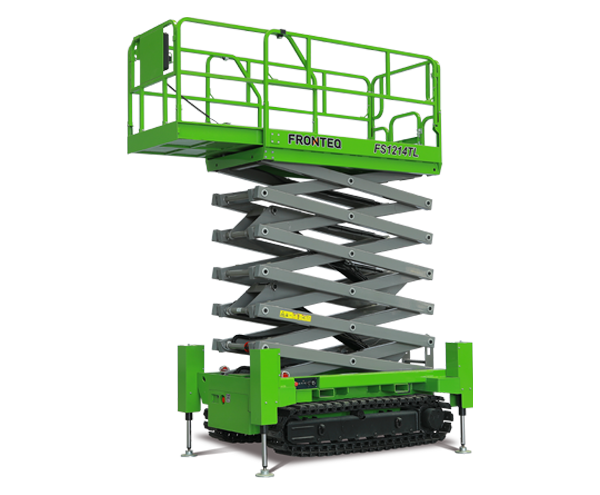

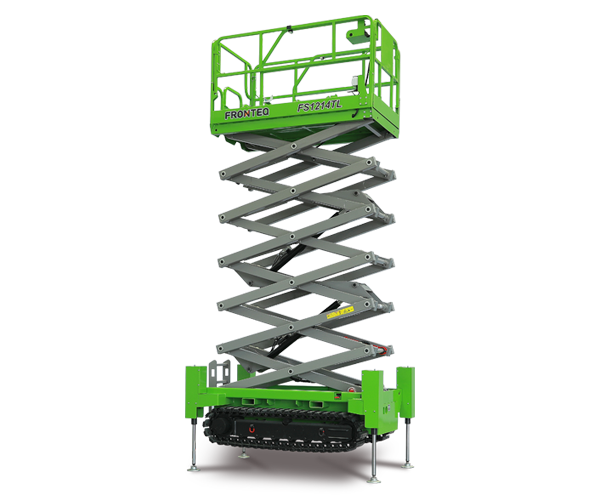

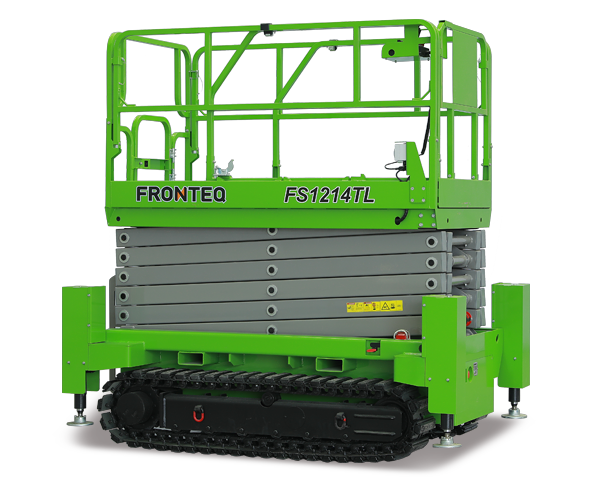

FS0614TL / FS0814TL / FS1014TL / FS1214TL

SCISSOR LIFT (Crawler | With outriggers)

The crawler scissor lift is with outriggers configuration. This range is designed according to the concept more than traditional, to allow it to work on tough sites, thus overcoming the restriction that aerial work platforms only can operate on slab ground. Equipped with AC drive motors that provide high efficiency and long running time, the maintenance-free AGM battery offers clean and quiet battery power for ultimate access flexibility. Fronteq crawler scissor lifts are setting a new standard within the industry.

8.0 ~ 13.8 m

Max. Working Height

1.61 m

Overall Width

320 ~ 550kg

Lift Capacity

    SCISSOR LIFTCrawler   |   With outriggers

    Model

    FS0614TL

    FS0814TL

    FS1014TL

    FS1214TL

    Dimensions

    Max. Working Height8.0 m9.9m11.8m13.8m
    A   Max. Platform Height6.0 m7.9m9.8m11.8m
    B   Overall Length (Stowed)2.66m2.66m2.66m2.66m
    C   Overall Width1.61m1.61m1.61m1.61m
    D   Overall Height (Guardrails unfolded)2.29m2.41m2.55m2.67m
    Overall Height (Guardrails folded)1.77m1.89m2.04m2.15m
    Platform Length (Stowed)2.25m2.25m2.25m2.25m
    E    Max Horizontal Reach (Extension)0.9m0.9m0.9m0.9m

    Weight

    Overall Weight2835kg3000kg3375kg3900kg

    Performance

    Max. Platform Occupancy (Indoor)3333
    Max. Platform Occupancy (Outdoor)3333
    Lift Capacity (without outriggers deployed)
    Lift Capacity (with outriggers deployed)550 kg460 kg320 kg320 kg
    Lift Capacity (Extension deck)120 kg120 kg120 kg120 kg
    Driving HeightNo driving when liftingNo driving when liftingNo driving when liftingNo driving when lifting
    Gradealility30%30%30%30%
    Turning Radius (Inside)0000
    Turning Radius (Outside)0000
    Maximum Working Inclination Angle0-0.5°/0-0.5°0-0.5°/0-0.5°0-0.5°/0-0.5°0-0.5°/0-0.5°

    Power

    Battery48V DC(8 x 6V,220Ah)48V DC(8 x 6V,220Ah)48V DC(8 x 6V,220Ah)48V DC(8 x 6V,220Ah)

    Fronteq (Changzhou) Machinery Co., Ltd. reserves the right to make any changes without notice concerning equipment, or specifications detailed on this web page or discontinue individual models. The configuration of equipment, delivered may differ slightly from those on the web page.
