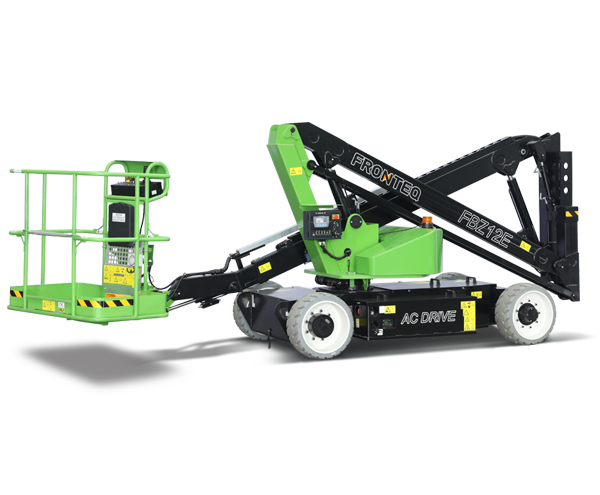

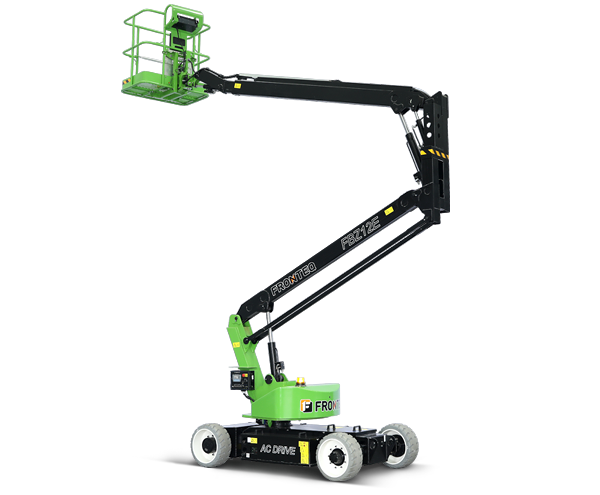

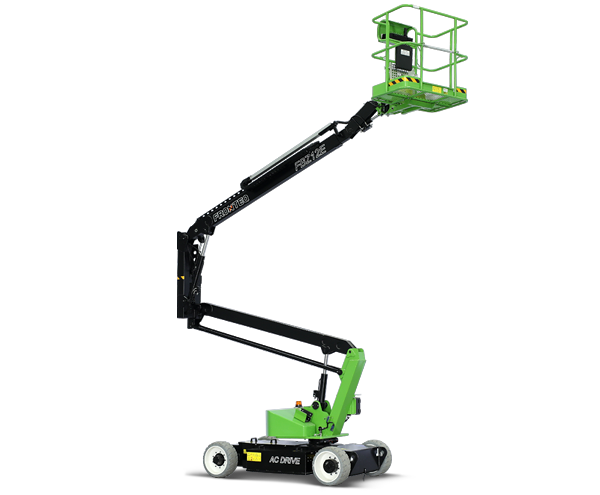

FBZ12E

BOOM LIFT (Articulated | 2 Wheel drive)

The articulated boom lift is available with 2-wheel drive configuration. This range is designed tough for the rental industry, with robust and reliable performance which easily reaches up and out-manoeuvre various obstacles. Accurate and efficient travelling AC drive system to provide strong power and smooth control. The products are simple to operate and have easy maintenance, boasting high-level safety and reliability.

13.5 m

Max. Working Height

1.64 m

Overall Width

215kg

Lift Capacity

    BOOM LIFTArticulated   |   2 Wheel drive

    Model

    FBZ12E

    Dimension

    Max. Working Height13.5 m
    Max. Platform Height11.5 m
    Max. Horizontal Outreach6.8 m
    Max. Up and Over Clearance5.7 m
    Platform Dimensions(L×W×H)1.18 × 0.78 × 1.1m
    A  Length-Stowed5.27 m
    B  Width-Stowed1.64 m
    C  Height-Stowed1.98 m

    Weight

    Overall Weight3735 kg

    Performance

    Max. Platform Occupancy (In door)2
    Max. Platform Occupancy (Out door)1
    Platform Capacity215 kg
    Gradeability30%
    Platform Rotation160°
    Turntable Rotation355° non-continuous
    Turning Radius-Inside0.91 m
    Turning Radius-Outside3.0 m
    Turntable Tailswing-Raised0 m
    Turntable Tailswing-Stowed0.75 m
    Drive2WD
    Tyres Spec/Type22 x 9-16 /Foam-filled
    Drive systemAC Drive motor

    Power

    Power Source8 x 6V /224Ah AGM Battery

    Fronteq (Changzhou) Machinery Co., Ltd. reserves the right to make any changes without notice concerning equipment, or specifications detailed on this web page or discontinue individual models. The configuration of equipment, delivered may differ slightly from those on the web page.
