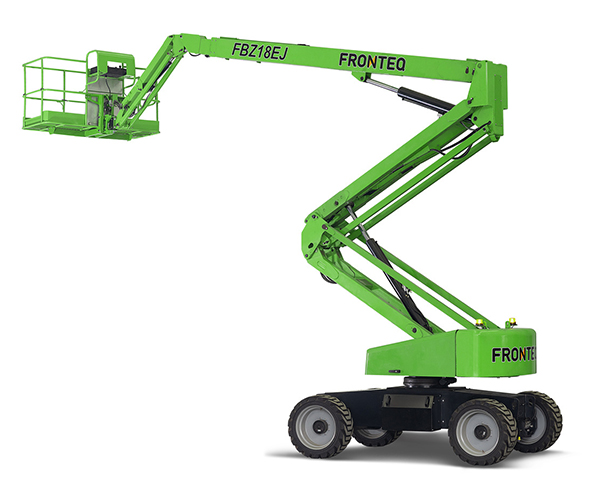

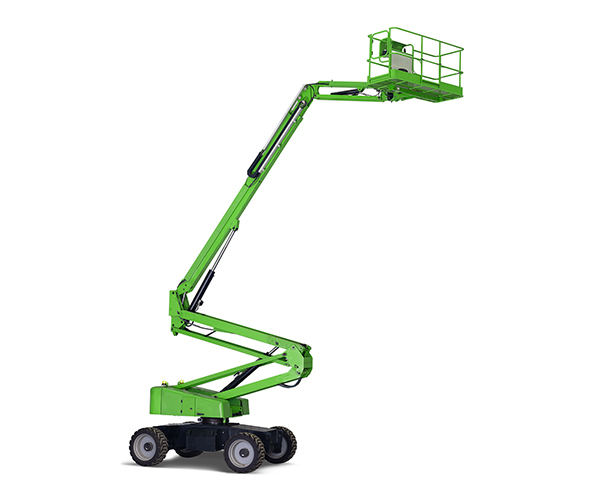

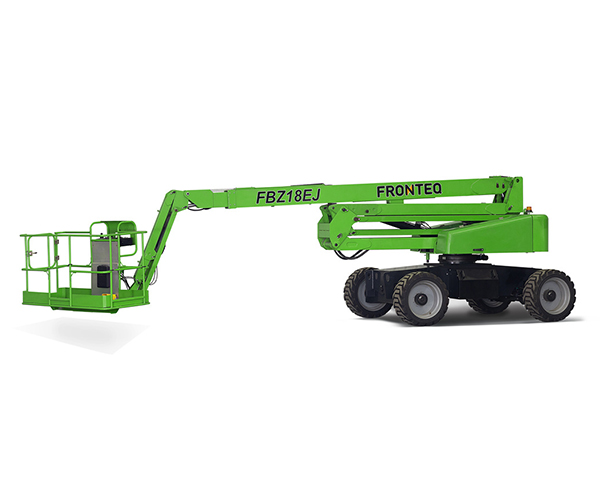

FBZ18EJ

BOOM LIFT (Articulated | Electric motor drive)

The articulated boom lift is available with 4-wheel drive configuration. This range is designed tough for the rental industry, with robust and reliable performance which easily reaches up and out-manoeuvre various obstacles. Accurate and efficient travelling AC drive system to provide strong power and smooth control. The products are simple to operate and have easy maintenance, boasting high-level safety and reliability.

20.6 m

Max. Working Height

2.45 m

Overall Width

250kg

Lift Capacity

    BOOM LIFTArticulated   |   Electric motor drive

    Model

    FBZ18EJ

    Dimension

    Max. Working Height20.6m
    Max. Platform Height18.6m
    Max. Horizontal Outreach11.7m
    Max. Up and Over Clearance8.1m
    Platform Dimensions(L×W)2.44 × 0.91m
    A  Length-Stowed8.8m
    B  Width-Stowed2.45m
    C  Height-Stowed2.57m

    Weight

    Overall Weight8600kg

    Performance

    Max. Platform Occupancy (In door)2
    Max. Platform Occupancy (Out door)2
    Platform Capacity250kg
    Gradeability30%
    Platform Rotation180°
    Turntable Rotation355° non-continuous
    Turning Radius-Inside2.18m
    Turning Radius-Outside5.33m
    Drive4WD

    Power

    Battery48V/350AH
    Charger48V/40A

    Fronteq (Changzhou) Machinery Co., Ltd. reserves the right to make any changes without notice concerning equipment, or specifications detailed on this web page or discontinue individual models. The configuration of equipment, delivered may differ slightly from those on the web page.
