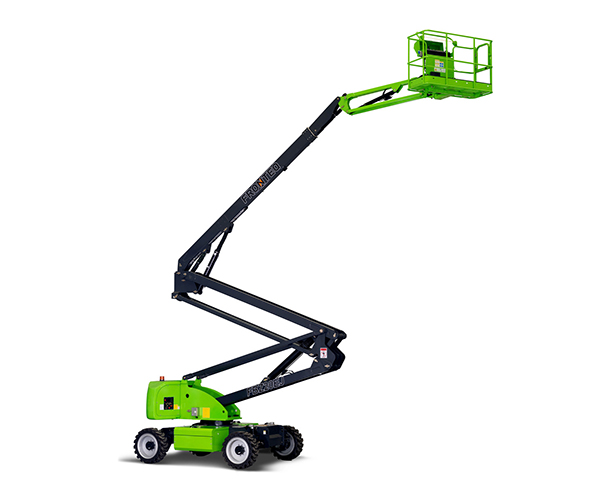

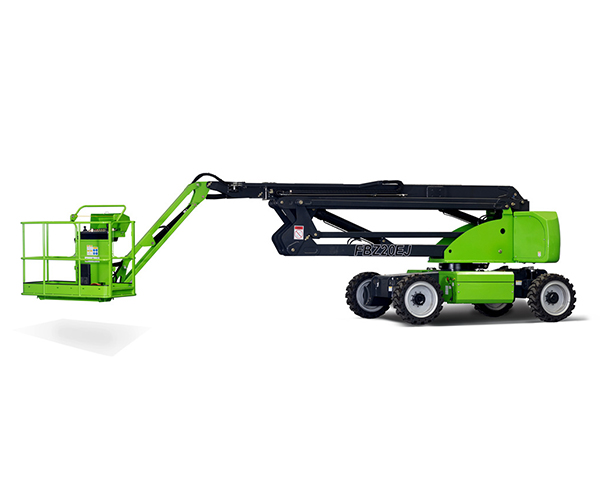

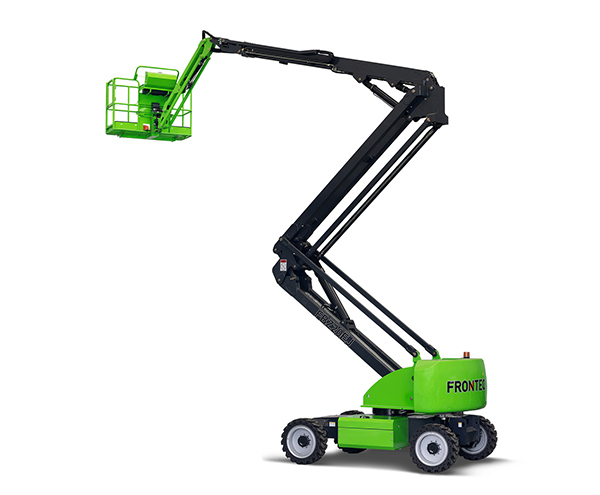

FBZ20EJ

BOOM LIFT (Articulated | Electric motor drive)

The articulated boom lift is available with 4-wheel drive configuration. This range is designed tough for the rental industry, with robust and reliable performance which easily reaches up and out-manoeuvre various obstacles. Accurate and efficient travelling AC drive system to provide strong power and smooth control. The products are simple to operate and have easy maintenance, boasting high-level safety and reliability.

22 m

Max. Working Height

2.38 m

Overall Width

230kg

Lift Capacity

    BOOM LIFTArticulated   |   Electric motor drive

    Model

    FBZ20EJ

    Dimension

    Max. Working Height22m
    Max. Platform Height20m
    Max. Horizontal Outreach12m
    Max. Up and Over Clearance9.2m
    Platform Dimensions(L×W×H)1.83 × 0.76 × 1.13m
    A  Length-Stowed8.72m
    B  Width-Stowed2.38m
    C  Height-Stowed2.36m

    Weight

    Overall Weight9350kg

    Performance

    Max. Platform Occupancy (In door)2
    Max. Platform Occupancy (Out door)2
    Platform Capacity230kg
    Gradeability30%
    Platform Rotation180°
    Turntable Rotation355° non-continuous
    Turning Radius-Inside2.1m
    Turning Radius-Outside5.2m
    Tailswing0.55 m
    Drive4WD
    Tyres Spec/Type33/12-20 /solid tire

    Power

    Battery48/390Amph
    Charge48/60 V/A

    Fronteq (Changzhou) Machinery Co., Ltd. reserves the right to make any changes without notice concerning equipment, or specifications detailed on this web page or discontinue individual models. The configuration of equipment, delivered may differ slightly from those on the web page.
