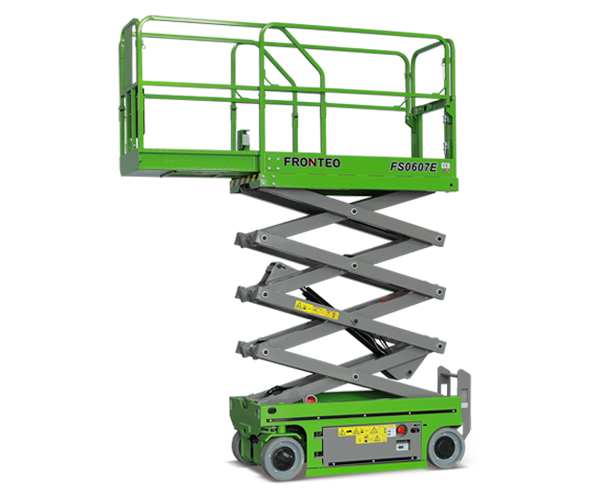

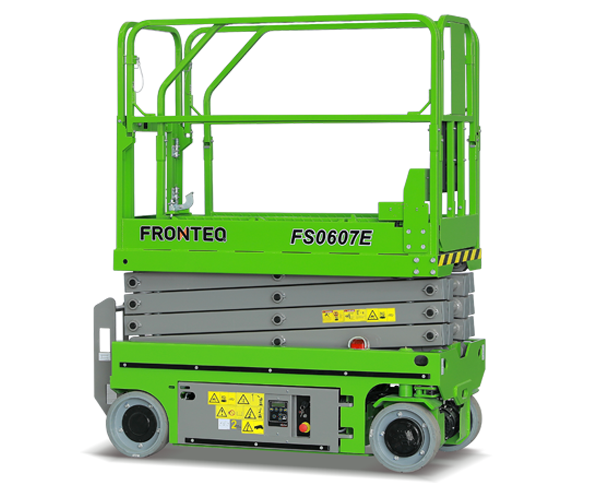

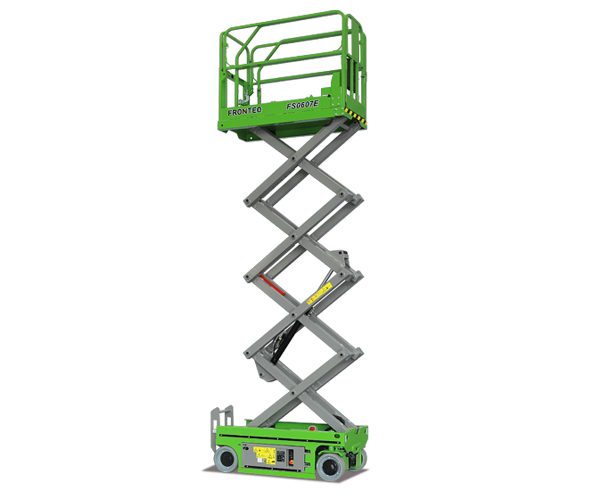

FS0607E

SCISSOR LIFT (Slab | Electric motor drive)

This range is designed for lifting people to carry out work at height in complete safety, the excellent performance lets operators easily manoeuvre around various worksites with firm, level surfaces. Equipped with maintenance-free AGM battery, an intelligent self-diagnostic system for quick troubleshooting, and swing-out component trays, which have fewer scheduled services and greatly reduce maintenance costs.

7.8 m

Max. Working Height

0.8 m

Overall Width

230kg

Lift Capacity

    SCISSOR LIFTSlab   |  Electric motor drive

    Model

    FS0607E

    Dimensions

    Max. Working Height7.8m
    A   Max. Platform Height5.8m
    B   Overall Length (Stowed)1.86m
    C   Overall Width0.80m
    D   Overall Height (Guardrails unfolded)2.13m
    Overall Height (Guardrails folded)1.65m
    Platform Length (Stowed)1.67m
    E    Max Horizontal Reach (Extension)0.9m
    Platform Width0.76m

    Weight

    Overall Weight1520kg

    Performance

    Max. Platform Occupancy (In door)2
    Max. Platform Occupancy (Out door)1
    Lift Capacity230kg
    Lift Capacity (Extension deck)120kg
    Driving HeightFull height
    Gradealility30%
    Turning Radius (Inside)0m
    Turning Radius (Outside)1.6 m
    Maximum Working Inclination Angle1.5°/3°
    Tyre Size32.3*10.0cm

    Power

    Battery4*6V/220Ah

    Fronteq (Changzhou) Machinery Co., Ltd. reserves the right to make any changes without notice concerning equipment, or specifications detailed on this web page or discontinue individual models. The configuration of equipment, delivered may differ slightly from those on the web page.
