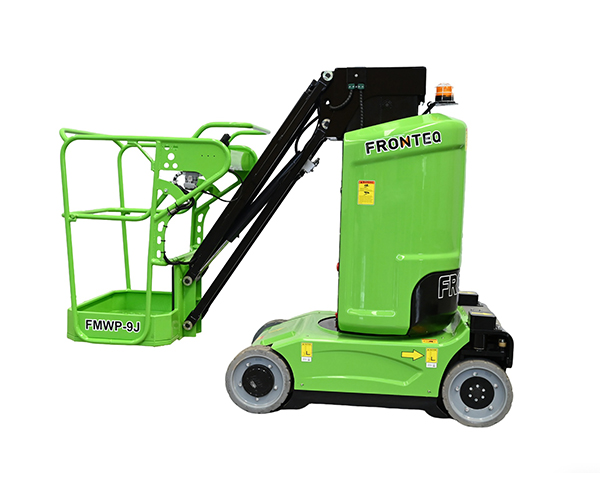

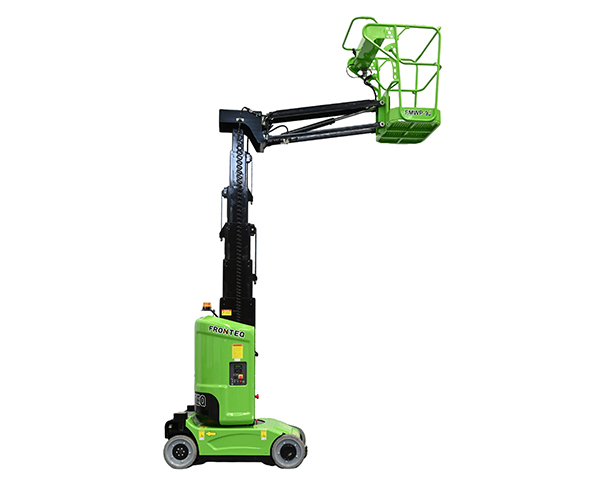

FMWP-9J_FRONTEQ MEWP

FMWP-9J

VERTICAL LIFT (Self-propelled | Column)

This range is designed with the concept of less noise, zero-emission, no pollution, energy saving, flexible operation and environmentally friendly. The compact structure makes it easy to set up and pass through narrow aisles and doorways and is suitable for warehouses, supermarkets, hotels, airports and other narrow-space environments.

11.2 m

Max. Working Height

1.0 m

Overall Width

200kg

Lift Capacity

VERTICAL LIFTSelf-propelled \| Column
Model	FMWP-9J
Max. Working Height	11.2m
Max. Platform Height	9.2m
Lift Capacity	200kg
Max. Occupants	2
Overall Length	2.53m
Overall Width	1.0m
Overall Height (Stowed)	1.99m
Platform Dimension	0.62m×0.87m
Wheelbase	1.22m
Turning Radius (Inside)	0.23m
Turning Radius (Outside)	1.65m
Driving speed (Stowed)	4.5km/h
Driving speed (Raised)	0.5km/h
Gradeability	X-2.5°, Y-2.5°
Driving Wheel Dimensions	Φ381×127mm
Self- Weight	2950kg

Fronteq (Changzhou) Machinery Co., Ltd. reserves the right to make any changes without notice concerning equipment, or specifications detailed on this web page or discontinue individual models. The configuration of equipment, delivered may differ slightly from those on the web page.
